Here you can find general hints about keeping your ThinkPad in good shape. Look at your models category page for IBMs official maintenance guide for that model.

Assembly/Disassembly instructions

Lenovo has a website dedicated to servicing ThinkPads, but it only covers the more recent models. For older models check the HMM (Hardware Maintenance Manual) for your ThinkPad.

Battery treatment

Battery life expanding guide
Battery Type NiCd NiMH Lithium ion
General
  • always do complete discharge/charge cycles
  • avoid exposing the battery (or notebook) to excessive heat
  • always do complete discharge/charge cycles
  • avoid exposing the battery (or notebook) to excessive heat
  • avoid deep discharges except when resetting fuel gauge or reconditioning a battery; partial dis-/recharges are better for the battery lifetime (note: fuel gauge will slowly get inaccurate over time)
  • remove battery when on AC (due to heat)
  • avoid exposing the battery (or notebook) to excessive heat
Charging
  • discharge before charging
  • discharge before charging
  • avoid charging if battery is nearly full, unless you will need its full capacity soon; keep it on the 30%-85% charged range
  • keep notebook off while charging due to heat
  • fully discharge, then fully charge battery when needed to recalibrate fuel gauge; newer battery pack models require this less often, old ones might need it as often as every 30 cycles
Storage
  • almost discharged
  • cool and dry
  • almost discharged
  • cool and dry
  • never fully charged or discharged, ideally at about 40%
  • cool and dry, but do not freeze them: 10-15C is recommended


Battery health

Batteries, especially of the modern Li-Ion type, wear out quicker when they hold a large charge or are subject to higher temperatures (see above).

If you use your laptop at a desk, reduce battery wear by maintaining an appropriate charge level. When possible, remove Li-ion batteries while operating from AC as the notebook gets hot enough inside for that to damage the battery in the long run, even if charging is stopped.

On recent ThinkPads, charging thresholds can be configured in the bundled software. Under Linux, this is supported on recent models by the tp_smapi driver (and even without tp_smapi, if you have a dual-boot setup, you can set the thresholds under Windows and they will be remembered as long as you don't power off your machine with AC disconnected; suspend to RAM is OK). Have a look at How to use UltraBay batteries.

If you have spare Li-ion battery packs, store them at 40% charge in a cool place (15C being a recommended temperature, do not let the batteries freeze). If storing inside a refrigerator, beware of humidity, and be careful with cold spots that can easily freeze the battery if anything goes wrong.

The problem with 600 series batteries

ThinkPad 600 power management causes batteries to die before they should. Read more about this on the associated problem page.

Reviving batteries

Some people experience sudden drops in their batteries capacity. A way to get these batteries back to full capacity is to run the "Battery Rundown" function of IBMs "PC Doctor for DOS". The program is downloadable from IBMs support site as three floppy disk images. Make sure you get the specific version of program made for your ThinkPad model. For those who do not have a floppy, David Smith prepared a bootable CD image (dead link, a copy is also available here) from the T22 floppy images. For newer ThinkPads there is an official bootable CD image. (Although the instructions on this page (as of May 2008) include details for Linux and refer to a CD image, it is actually provided as a Windows executable. On Linux systems, Wine can execute this file and extract the CD image.) Once extracted, you must mount the iso as a loop device (as root) like so:

# mount -o loop 1ety48ww.iso /mnt/floppy

Then copy the .IMA file out of that mounted iso:

# cd /mnt/floppy
# cp 1ETY48WW.IMA /boot

(Or to some other suitable directory.) After this, you can follow the same directions that apply for BIOS upgrades.

NOTE!
This will do nothing to improve the performance of a dying battery. It serves only to recalibrate the battery charge controller. The "Battery Rundown" function of IBMs "PC Doctor for DOS" has no intelligence. It merely runs a series of dumb operations to consume battery power, and it cannot detect whether a battery is present or not. If you leave the mains connected while running "Battery Rundown", it will have no effect, as the battery will simply keep charging. The tp_smapi module, if installed, will report the number of charge cycles the battery has had since it was manufactured. If that number is high, the battery's poor performance is almost certainly due to its age.

I have recently made an interesting discovery, I have an R40 with two main batteries, both of them have aproximately about under 200 cycles and are nowadays 4 years old, projected capacity for R40/R32 main battery is 57Wh, and both my batteries were about 30Wh, then I left my notebook with one of them about a day in a standby mode, as long as it powered off itself because of low battery power, when I turned it on I saw the battery capacity at about 42Wh, then, I did this too for the second battery and I got even about 46Wh, I think I could go even higher with letting the battery discharge completely from 100% in standby, I think this has something to do with low power consumption in standby mode, it may work for you too.

See also

External sources

Cleaning the Display

If you discover markings that look like they originate from the TrackPoint or keyboard, or for information on how to avoid these, look at this page.

External Sources

Cleaning the Interior

ATTENTION!
The following instructions are not appropriate for all ThinkPad models. Please consult the hardware maintenance guide or on-line disassembly instructions for your model.

Most ThinkPad models (particularly the A-series and the T-series) tend to accumulate a lot of interior dust which they draw from their ventilation fan. A good dusting every few months is advised. The procedure is as follows.

ThinkPad T4x series

See IBM's keyboard removal instructions and movie.

ThinkPad T6x series

See IBM's keyboard removal instructions and movie.

Other models (which?)

  1. Unplug the computer.
  2. Remove the battery.
  3. Turn the ThinkPad over and find two to three screws with upraised double-arrows pointing to them.
  4. Unscrew these screws and set them aside.
  5. Press the silver area underneath where the battery used to be. The front of the keyboard will pop up.
  6. Turn the ThinkPad right side up and gently remove the keyboard, pulling it toward you.
  7. There is one connector between the ThinkPad and the keyboard. Disconnect it, and set the keyboard aside.
  8. If there is a small black plastic separator under the keyboard, remove it and set it aside.
  9. The fan should be visible in the upper left. That entire area will likely be dusty. With a can of compressed air (and only with a can of compressed air), dust that area and the surrounding area.
  10. Replace the small black plastic separator, then reconnect the keyboard.
  11. Slide the keyboard back into place, then press down on the Fn and right-arrow keys until it pops into place.
  12. Replace the keyboard screws and battery.

Dealing with spilling accidents

  1. Don't panic.
  2. Don't flip or tilt the computer to prevent the liquid from spreading all over the inside of the case.
  3. Shut down the OS and turn off the power:
    1. Unplug the computer.
    2. Remove the battery.
  4. Tilt the computer so that everything that leaked into the case can flow out the same way.
  5. Allow the computer to dry before switching it on again.
  6. For minor accidents this might already be sufficient. For major flooding you should either bring the computer to a dealer who knows how to open and clean it from inside. Or you can read the Hardware Maintenance Manual, open, clean, and dry the computer yourself.

See also Act quickly, carefully if you spill on laptops on MoneySense.ca (link broken as of 2006-09-18, the article is still available via web.archive.org).

Harddisk Backup / Upgrade

External Sources

Recovering BIOS passwords.

Password recovery procedure for IBM ThinkPads using R24RF08 and IBMpass.

(Note: An updated tutorial can always be found HERE)


1. Introduction.

The IBM ThinkPad uses a small eeprom (ATMEL 24RF08) to store different OEM issues like serial number, UUID, etc. The supervisor password (SVP) is also stored in this eeprom. The 24RF08 is not an ordinary eeprom: it features read protection, which the BIOS uses to lock down access to the eeprom contents. Also, the password is written in a special scan code, which needs to be translated to ASCII to be of any use.

To recover the password, one can use two different programs: R24RF08 (eeprom reader) and IBMpass (password revealer) available at http://www.allservice.ro/store/utils. Diagrams are included in the reader kit.

Models for which R24RF08 and IBMpass are enough to recover the password: 240, 240X, 390E, 390X, 570, 570E, 600e, 600X, 770Z, A20m, A21e, A21m, a22m, A30, A30p, A31, A31p, G40, G41, R30, R31, R32, R40, R50, R51, Transnote, T20, T21, T22, T23, T30, T40, T40p, T41, T41p, T42, T42p, X20, X21, X22, X23, X24, X30, X31, X40, X41, X61.

ThinkPads featuring TPCA technology (i.e. a TPM trusted platform module chip), especially T4x, X3x, X4x, X61 and X61T need the W24RF08 eeprom writer program to complete the password recovery procedure, if the passphrase function is enabled in BIOS setup.

Other models such as the 380XD or 600 use 24C01 or 93C46 eeproms, which can be read without special tools. The method is the same like for the models based on 24RF08, only the software to dump the eeprom is different.

Newer T43/T43p, R52, R60, T60/p, X60 and Z60 ThinkPads can be unlocked using PC8394 programming tools that consist in RPC8394 and WPC8394 (reader and writer for TPM chips). The software is available as well at www.allservice.ro. IBMpass 2.0 works for any TP model without exceptions.


2. Locating the ATMEL 24RF08 eeprom. Soldering.

No need to unsolder the 24RF08 eeprom, just solder 3 wires to SDA, SCL and GND pins of the eeprom. There are two eeprom layouts (see interface schematics described bellow), corresponding to 8 pin or 14 pin eeproms. Locate the eeprom first according to your model (E.g. T20-23 and T30 have the eeprom underneath TP, and can be accessed by removing the RAM modules cover, no need to dismantle the laptop.) and solder the wires using a soldering iron with a fine tip. Also, you can use 0.15 -0.20 mm enamel coated wires or similar small diameter insulated wires. These wires will be connected later to the interface. Tip: You can use clips to connect the wires or you can solder on the PCB traces leading to the eeprom pins. Once again, be careful and double, triple check the soldering if necessary till you are positively sure you have done the right job. In case of applying too much solder, use flux-impregnated copper-braid "desoldering wick" - this works exceptionally well.


3. Choose and build the interface.

Since version 2.0, R24RF08 and W24RF08 (eeprom writer) are compatible with a wide range of eeprom programmers. By default, both programs set the COM port signals to use direct logic level to access I2C bus. We provide here 2 schematics that are relevant for direct logic signals and for inverse logic signals (simple-i2cprog.pdf and driven-i2cprog.pdf). Also, depending of the interface you build, you can invert the logics for SDA-In, SDA-Out, and SCL COM port signals by some command line parameters described later in this document. a) The file simple-i2cprog.pdf contains the schematic diagram of a simple interface (known as SIPROG)based on 2 zeners and 2 resistors. This is a classic, easy to build circuit and works with soldered or unsoldered eeproms. The purpose of the 2 zeners is to convert RS232 levels (+/- 5V) to TTL levels, needed by the eeprom. It uses direct logic signals to I2C eeprom and is powered by the COM port. However, this interface works with in-system eeproms but is dependant on COM port current and eeprom bus impedance. R24RF08 works natively with this circuit, no need to change the lines signals with command line parameters. This circuit works pretty well with almost all ThinkPads series. b) The second interface is described in driven-i2cprog.pdf. The circuit uses MAX 232 as a RS232 to TTL driver and its main purpose is to work with soldered eeproms. The advantage of MAX232 is the TTL outputs that are more reliable and more powerful when work with soldered, in-system eeproms (dependency free from the COM port current). Due of the internal inverters of MAX232 the interface responds to an inverse signal logic level. R24RF08 needs /x, /d, /i switches to be specified in the command line.

What these switches mean: /x - invert serial clock, also known as SCL; /d - invert serial data output, also known as SDA-Out; /i - invert serial data input, also known as SDA-In. All those can be used in any combination to meet any interface specification.

Note that the "standard" serial port programmer probably won't work with a USB-Serial adapter, but requires the full nominal voltage of a hardware serial port. [Example: the A22p's serial port works fine here.]


4. Dump the EEPROM:

Prepare your technician PC by connecting the interface to the COM1 port (don’t connect the wires to eeprom yet). Turn on the ThinkPad and press F1 to enter BIOS Setup. When you are prompted for the password and there’s no other activity like HDD access or so, connect the wires (GND first!, SDA, SCL) to the corresponding wires from the interface (attached before to COM1) and execute R24RF08:

-for SI-PROG interface (as described in 3.a above): r24rf08.exe <filename.ext>. where filename.ext is the file where eeprom content will be stored. Example: r24rf08 mytp.bin

-for MAX232 driven I2C interface (as described in 3.b above): r24rf08.exe <filename.ext> /x /d /i. where /x /d /i are command line parameters (switches) for this kind of interface. Example: r24rf08 mytp2.bin /x /d /i

Use exactly the instructed switches to avoid possible damages to your eeprom data! The file should be created in the same folder. Finally, disconnect the wires (GND last!) and turn off the ThinkPad by pressing on/off switch.

Dump the EEPROM data at least twice, and do a bytewise compare with `cmp`. Both files should be identical, and 1024 bytes long. Otherwise, you probably have a serial port problem.

Note: the r24rf08.exe program automatically sets the serial port parameters. It also works fine with Wine under Linux - provided that a symlink (com1) exists in the .wine/dos_devices directory, and points to the /dev/ttySX for the actual serial port.


5. Reveal the password.

Now, you have the .bin file but you need to dump in scan code to retrieve the password. IBMpass 2.1 Lite is a free tool that will do the job. Just open the eeprom dump you’ve created before and search for 0x330, 0x340 lines. The password is located on 0x338 (and 0x340 depending on model) in scan code. For 24C01 eeproms the password is located at 0x38, 0x40. If the password won't work for the very first time then your eeprom may use newer IBM scancodes. In this case switch to alternate scan codes to find it. For those who want quick answers the recommended version is IBMpass 1.1. Usage for IBMpass 1.1 (command line only):

ibmpass mytp.bin – use “/a” switch to see in alternate scan code if needed: ibmpass mytp.bin /a

For some old models like 570 or 770Z you need to execute the eeprom patcher first. This will reset the read protection on the password offset. To do that just execute patcher.exe before the reading operation, without rebooting the laptop:

-for SI-PROG: patcher.exe , then immediately r24rf08.exe <filename.ext>

-for Driven-I2C (Max232) you must insert the switches: patcher.exe /x /d /i, then immediately r24rf08.exe <filename.ext> /x /d /i

W24RF08, the writer version, has included the complete APP reset operation you don’t need to use patcher.

Moreover, there are a new encrypting algos used with some new security chips (AT97SC3201, AT97SC3203) that are very secured. The password is not in scancode and in some cases not even in the eeprom. To unlock the machine, the dump should suffer some changes and the eeprom must be reprogrammed using W24RF08. This operation works for all IBM TCG/TCPA secured laptops w/o exceptions.


Remember, use 3 wires from the interface and 3 wires from eeprom! Connect them after your ThinkPad is powered and disconnect them right after you read the content, before you switch off the laptop.

6. Password format

The thinkpad power-on/supervisor passwords are a maximum of 7 characters, and are NOT case-sensitive. The allowed characters are restricted to A-Z, 0-9, semicolon, _, - (and perhaps a few others). If PassPhrase is enabled then the password can be longer than 7 characters. Models like T43/R52/T60/R60/T60/X60/Z60/Z61 need the TPM chip dumped with PC8394 programming tools in order to find password/reset the TCPA lock.

Recovering Windows Administrator passwords

What should your do when you forgot the password to login to windows system? Ask an administrator to reset the log on password for you. If you yourself are administrator, and you can't remember the administrator password, the problem get a little tricky, and probably hard to recover the "forgotten password" again. Before you search for recovery CD or Windows DVD to format and reinstall Windows onto the computer, here a few solutions you can try to unlock the windows to gain access to the system again, at least by resetting the password
Method 1: Take a rest, and try hard to remember the forgotten password
Sometimes, human being is a little weird. You won’t get the thing that you urgently need. So have a coffee, take a snap or even come back after a few days, you may found that you suddenly ‘remember’ your Windows password.
Method 2: Try No Password Administrator Login Backdoor
In Windows XP (not Windows Vista as Administrator account is not enabled by default), there is built-in Administrator user account, that has administrative credentials, enabled by default, and without any password to protect the account from been access. If you didn’t change this Administrator’s password, then try to sign in to Windows XP without password.
Method 3: Reset password from another user account with administrator credentials
If you cannot log on to Windows by using a particular user account, but you can log on to another account that has administrative credentials, follow these steps on how to do the trick: Log on to Windows by using an administrator account that has a password that you remember. You may need to start WinXP in safe mode. Click Start, and then click Run. In the Open box, type “control userpasswords2″, and then click OK. Click the user account that you forgot the password for, and then click Reset Password. Type a new password in both the New password and the Confirm new password boxes, and then click OK.
Method 4: Do-It-Yourself (DIY) third party recovery tool
There are a lot of tools and utilities that can be downloaded and used to recover, reset, retrieve or reveal existing password. Take Windows Password Recovery 6.0 for example, Windows Password Recovery 6.0 creates a password reset CD that work during the boot process and instantly reset Administrator or other account passwords and Windows security setting which prevent you from logging in.

Step 1: Burn a bootable CD/DVD to remove lost Windows password.

  1. Download a reliable third part utility (here, take Windows Password Unlocker for example)in any available computer, and then start the Windows password recovery tool.
  2. Click OK when the burning task is completed.
  3. And now the bootable CD/DVD is burned and you can use it to remove your lost Windows password.

Step 2: Set BIOS to boot from CD/DVD

  1. Insert the burned CD/DVD into the locked computer, and then to set your computer to boot from CD/DVD. If you don’t know how to, please do as follows:Step by step guide on how to make computer boot from CD ROM first.
  2. Start computer and press F2 or Delete to enter BISO setup during the initial startup screen.
  3. Note: The key pressed to enter BIOS is different based on manufacturers, but F2 or Delete are the most common keys.
  4. Use the arrow keys to select the Boot tab, and then select Boot Device Priority and press Enter.
  5. Choose 1st boot device to CD ROM, and then press F10 to save settings. And the computer will restart with the changed settings automatically.

Step 3: Recover forgotten Windows password with the burned CD/DVD

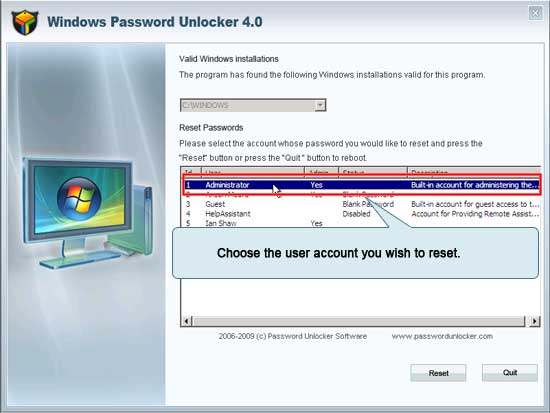

  1. After your computer restarting with the changed settings automatically, you can see the interface of Windows Password Unlocker Standard. And you‘ll find all user names of your accounts will be displayed with the passwords showing unknown or empty.
  2. Unknown means you have a password for the user name, maybe you lost it.
  3. Empty means you do not have a password for the user name, you can login the account without password.

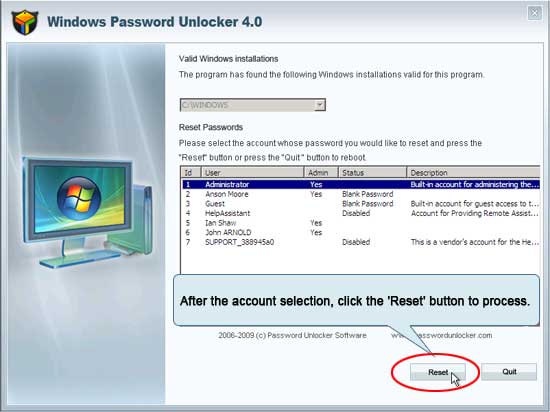

  4. Select your target Windows system if you have two and the specified Windows account you want to recover, and then click Reset button.

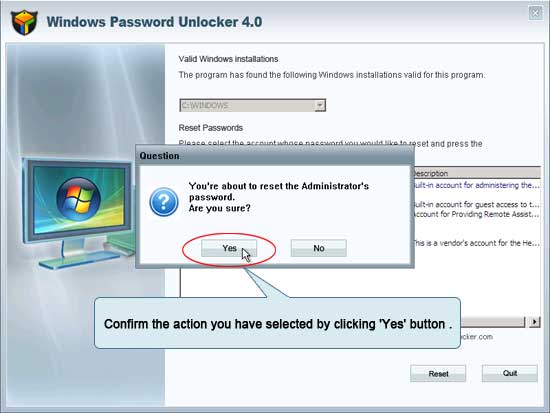

  5. Click Yes to confirm and continue your operation.

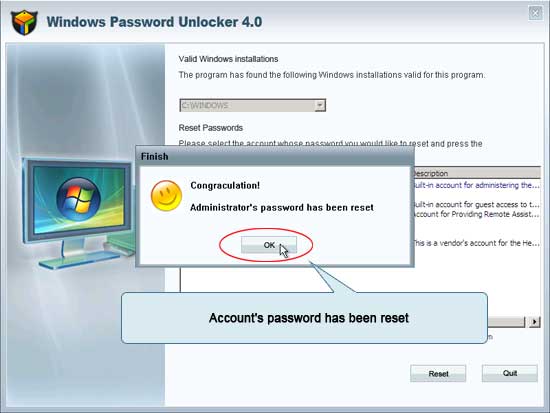

  6. Click OK when the password of the selected account is successfully removed. And now you can log on your computer without password.

Tutorial to Create Windows Password Reset Disk

A Windows password reset disk is a specially created floppy disk or USB flash drive that can be used to gain access to Windows if you've forgotten your password. If you've ever forgotten your Windows password before, you can imagine how valuable a password reset disk is.

Be proactive and create a password reset disk right now. It's completely free, aside from needing a floppy disk or USB drive, and it's very easy to do.

You can create a password reset disk using the Forgotten Password Wizard in Windows.

The specific steps necessary to create a password reset disk depends on which Windows operating system you're using:

disk/ Tutorial to create a Password Reset Disk in Windows 7

disk/ Tutorial to create a Password Reset Disk in Windows Vista

disk/ Tutorial to create a Password Reset Disk in Windows XP


You must create a Windows password reset disk before you forget your password. If you've already forgotten your password and you have not yet created a password reset disk, you'll need to use a Windows password recovery tool to find or reset Windows password.
