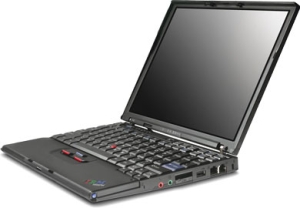

ThinkPad X40

This page gives an overview of the ThinkPad X40.

Standard Features

One of the following motherboards (CPU and RAM soldered to it):
- Intel Pentium M (Banias) 1.2 LV with 256MB or 512MB PC2700
- Intel Pentium M (Banias) 1.3 LV with 256MB PC2700
- Intel Pentium M (Banias) 1.0/1.1 ULV with 256MB PC2700
- Intel Pentium M (Dothan) 1.4/1.5/1.6 LV with 256MB or 512MB PC2700
- Intel Pentium M (Dothan) 1.1/1.2 ULV with 256MB PC2700
Intel Extreme Graphics 2
- 12.1" TFT display with 1024x768 resolution
256 or 512MB PC2700 memory standard, 1.25 or 1.5GB Max
1.8" HDD with 20, 30, 40, or 60GB capacity (PATA)
Intel AC'97 Audio with a AD1981B codec
Intel Gigabit Ethernet (10/100/1000)
CDC slot with one of the following:
- IBM Integrated 56K Modem (MDC-2)
- IBM Integrated Bluetooth III with 56K Modem (BMDC-2)
MiniPCI slot with one of the following:
IBM Embedded Security Subsystem 2.0
IBM Active Protection System
SD Card slot with IO support
CardBus slot (Type 2)

Resources

ThinkPad X40 - Hardware Maintenance Manual (September 2005) (5,945,713 Bytes)
3D model of keyboard
3D model of hinges
